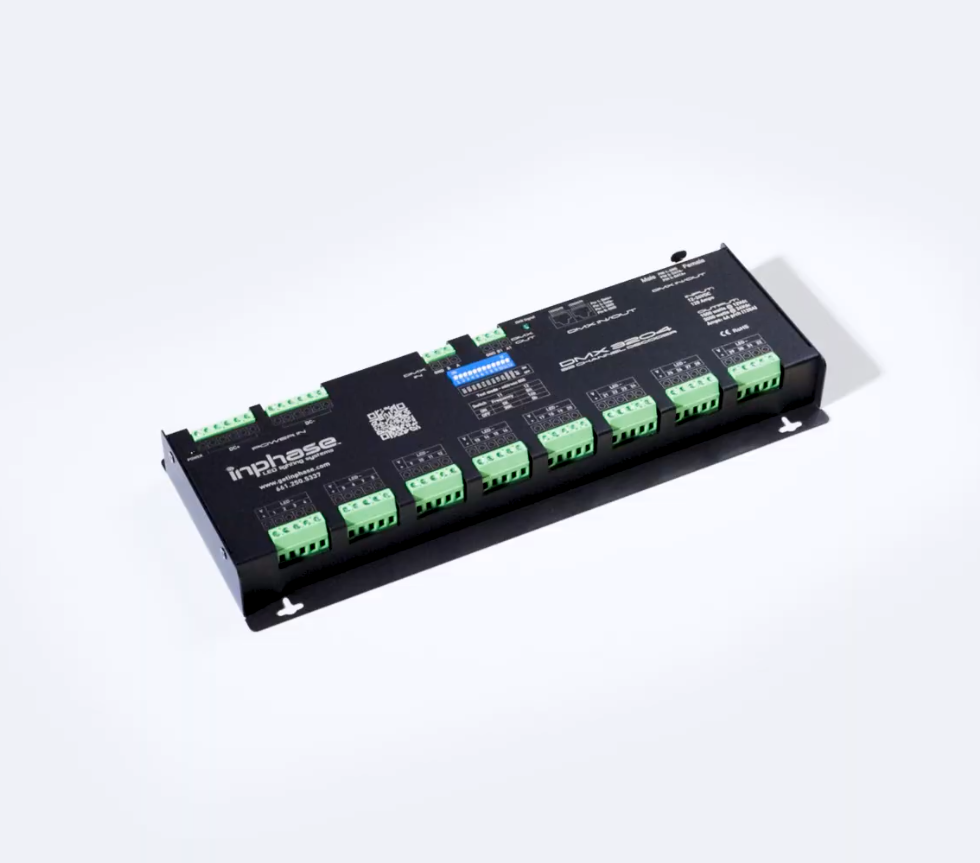

DMX3204 32‑Channel DMX Decoder for 12V – 24V LED Lighting

The DMX3204 is a powerful 32-channel DMX decoder designed to handle high-capacity lighting systems with ease. With support for up to 128 amps (over 3000W at 24V DC), this decoder is engineered for large-scale RGB, tunable white, or multi-circuit installations that demand robust power delivery and flexible control. Multiple DC inputs allow users to parallel power supplies, enabling output of 1500W at 12V or 3000W at 24V, with each channel capable of delivering up to 4 amps. This decoder offers versatile DMX input options—including RJ45, 5-pin XLR (male and female), and Phoenix-style connectors—to ensure easy integration into new or existing DMX infrastructures. Onboard DIP switches allow quick adjustments for PWM frequency (5,000 or 30,000 Hz), 8-bit or 16-bit resolution, and termination, making this unit equally suited for field or rack-mount environments. With clearly labeled outputs (Channels 1–32) and industrial-grade build quality, the DM-3204 delivers clean, reliable performance in even the most demanding professional lighting applications.  Specifications: Number of Channels: 32 DMX Input Types: (2) RJ-45 (CAT 5) (1) male 5-pin XLR DMX (1) female 5-pin XLR DMX (8) Phoenix type 5-pin connector (1) Phoenix type 3-pin connector Output Current : 40A total / 8A per channel Input Voltage: 12V or 24V DC Output Voltage: 12V or 24V DC Size: 12.25” x 4.75” x 1.25” Weight: 1 lb. 11 oz.
