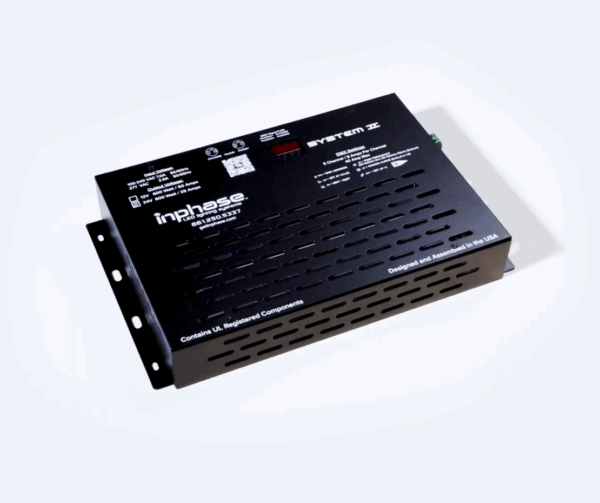

System 2 (24V/600W) DMX Controller for LED Lighting With Integrated Decoder

The System 2 is a powerful, all-in-one DMX control solution designed for demanding lighting applications that require high power output and a clean, professional installation. This unit combines the versatility of the DMX5408 5-channel DMX decoder with a fully encapsulated, Class 2–rated 600W power supply delivering significantly more capacity than the System 1. Built into a durable 16-gauge metal chassis, the System 2 supports plug-and-play deployment with multiple daisy-chained DMX input options and an auxiliary output for additional control flexibility. With a Phoenix output connector rated for 30A per pin and a standard 5-15 Edison AC input, this system is ideal for high-demand entertainment, architectural, or commercial installations where space, performance, and compliance matter.  Specifications: 600W fully encapsulated power supply, available in 24V DC Integrated DM-5408 decoder/controller that enables RDM via the following daisy chained inputs: (2) RJ-45 (CAT 5) (1) male 5-pin XLR DMX (1) female 5-pin XLR DMX (1) 5-15 Edison AC input receptacle (1) Phoenix 6-pin 30A/pin output connector (1) Auxiliary output for additional DMX or manual dimmer control 16-gauge metal chassis Size: 15” x 11 x 2.25” Weight: 16 lbs.
