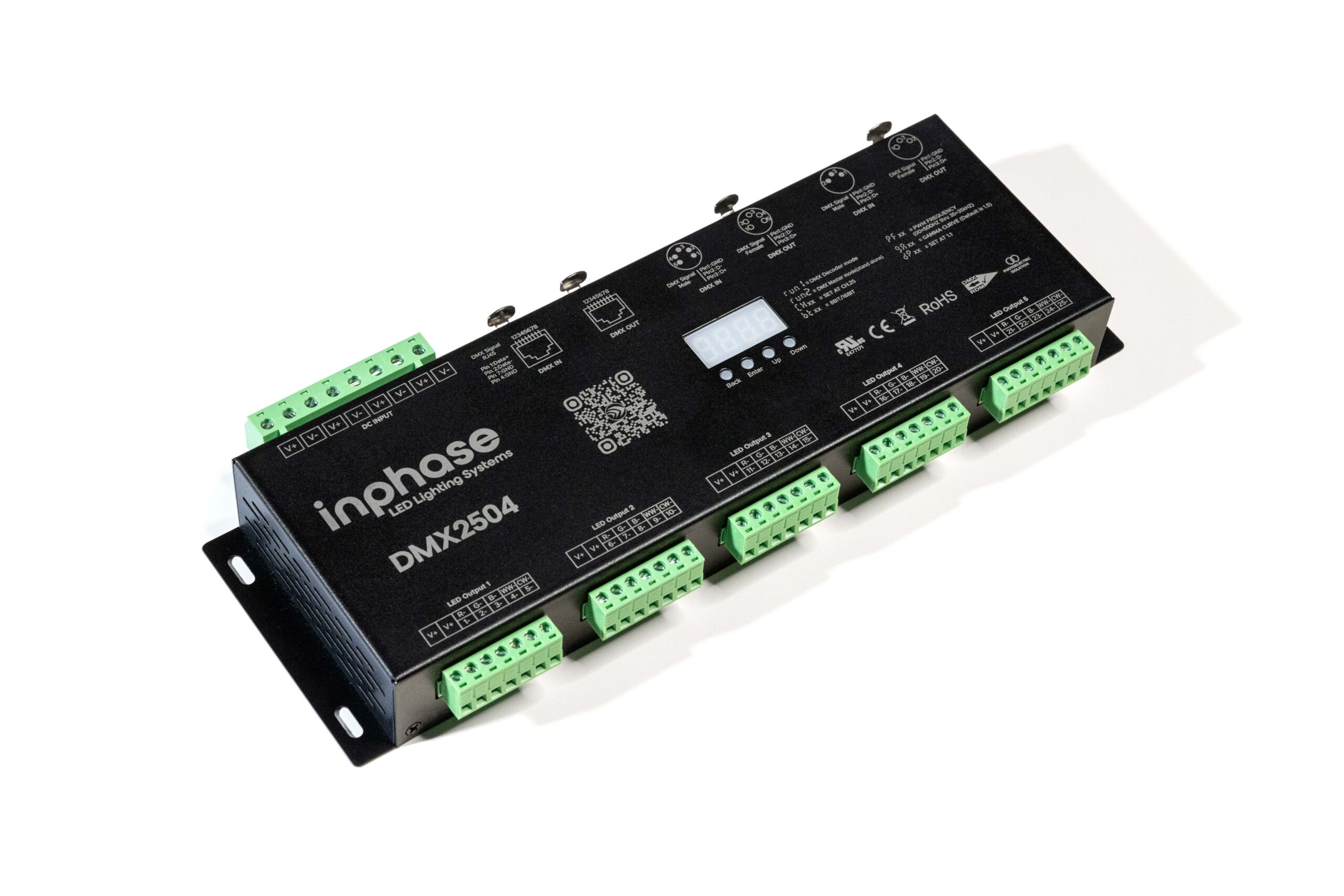

DMX2504 25-Channel DMX/RDM Decoder for 12V – 24V LED Lighting

The DMX2504 is a professional-grade 25-channel DMX/RDM decoder designed for environments where precise LED control and system reliability are essential. Built for studio, stage, architectural, and scenic installations, the DMX2504 provides smooth, flicker-free dimming across multi-channel LED systems including RGB, RGBW, RGBAW, and RGBCCT layouts. Five independently grouped 5-channel output blocks (4A per channel) allow direct connection to high-output 12V or 24V constant-voltage LED tape and fixtures. The onboard menu and digital display simplify addressing and configuration, while RDM support enables remote setup and monitoring when used with an RDM-enabled controller. With an adjustable PWM frequency up to 35kHz and selectable dimming curves, the DMX2504 ensures clean visual performance both on camera and in person, making it a dependable choice for broadcast lighting, immersive environments, and high-impact event design. Specifications: Input Voltage: 12V-24V DC (constant voltage) Output Capacity: 25 channels @ 4A per channel max Output Configuration: 5×5-channel terminal blocks Input/Output Signal: DMX512 / RDM-enabled PWM Frequency: Adjustable, 500Hz to 35kHz Operating Temperature: 32°F to 104°F IP Rating: IP20 Dimensions: 187.7 × 85.3 × 41mm
